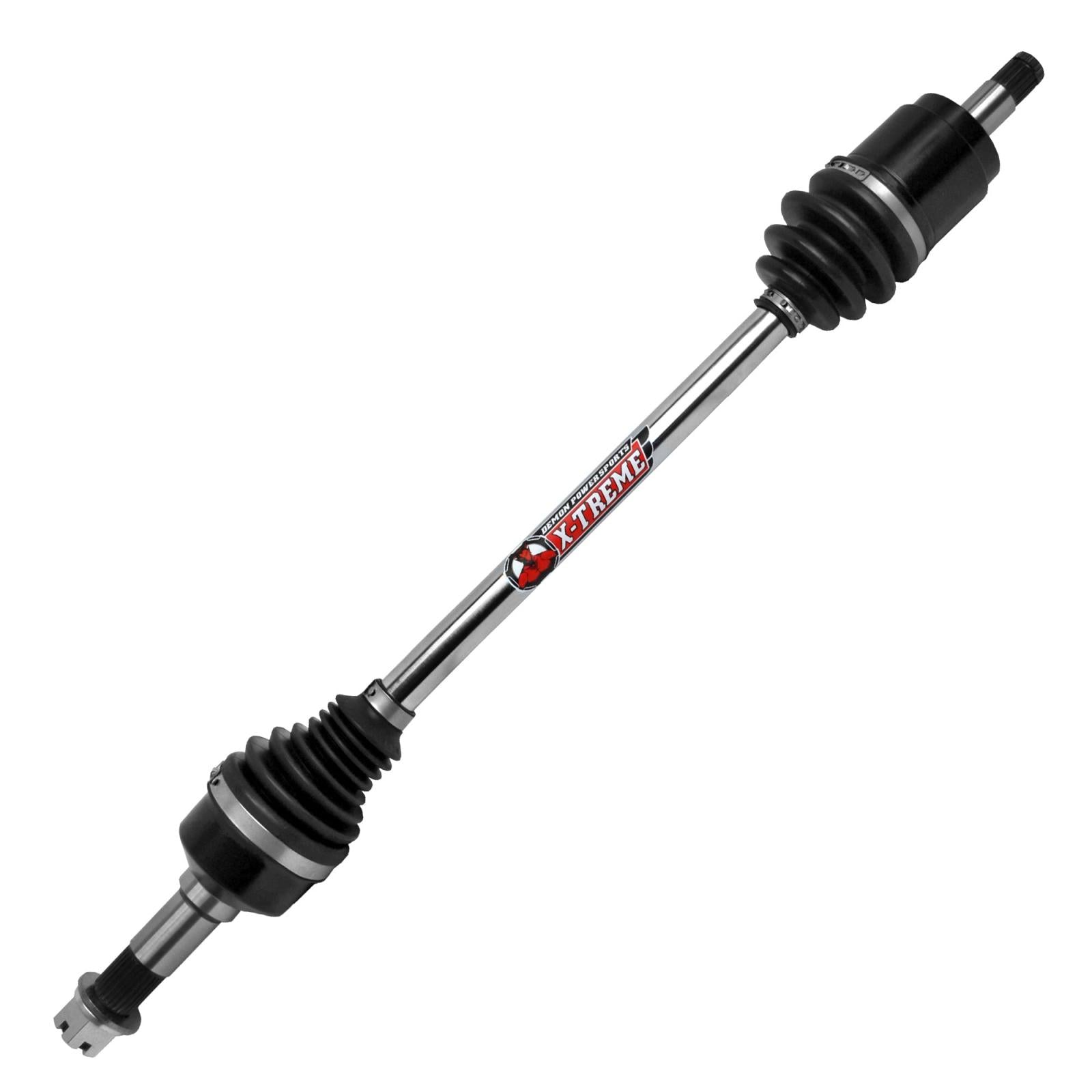

Xtreme HD Front Axle Race Spec 300M Yamaha YXZ 1000R
Xtreme HD Front Axle Race Spec 300M Yamaha YXZ 1000R
Vehicle fitment & requirements
- : 2016–2025
Exact model, year, trim, position/configuration and equipment combinations are listed in fitment_notes. All restrictions on each line apply.Manufacturer SKU PAXL-8018XHD-R. Verified 2026-10-11 against embedded manufacturer SKU application data. Each line is an independent exact application; years must not be combined across models/trims/location-configuration keys/equipment. Only explicitly listed years are supported.
2016,2017,2018,2019,2020,2021,2022,2023,2024,2025 | YXZ1000R | Front Left | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2016,2017,2018,2019,2020,2021,2022,2023,2024,2025 | YXZ1000R | Front Right | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2016,2017,2018,2019,2020,2021 | YXZ1000R SE | Front Left | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2016,2017,2018,2019,2020,2021 | YXZ1000R SE | Front Right | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2017,2018,2019,2020,2021,2022,2023,2024,2025 | YXZ1000R SS | Front Left | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2017,2018,2019,2020,2021,2022,2023,2024,2025 | YXZ1000R SS | Front Right | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2017,2018,2019,2020,2021 | YXZ1000R SS SE | Front Left | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2017,2018,2019,2020,2021 | YXZ1000R SS SE | Front Right | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2020,2021,2022,2023,2024,2025 | YXZ1000R SS XT-R | Front Left | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
2020,2021,2022,2023,2024,2025 | YXZ1000R SS XT-R | Front Right | There might be minor grinding required or limiting straps needed to prevent boot or housing interference. | S1
Sources:
S1: https://www.demonpowersports.com/products/yamaha-yxz-1000r-demon-xtreme-heavy-duty-axle-race-spec-300m
Check your exact model, year, trim and equipment before ordering.
Select your vehicle to check the recorded application and installation requirements.
SELECT OR CHANGE VEHICLE →Shipping requires confirmation for this configuration. Request a quote before payment.
Couldn't load pickup availability
Our Strongest Axle to Date, You can say we have of the strongest UTV/SXS axles on the market if not the one. We have made our best axle even better now.
The Demon Xtreme Race Spec axles are redesigned and re-engineered with a robust 300M shaft designed to flex and absorb force, ensuring unparalleled durability.
Say goodbye to constant CV breakages and drivetrain failures - our product is engineered to withstand the toughest challenges, making it perfect for heavy lifting, oversized tires, and endless adventures. Get ready for a driving experience like never before with our solution tailored for maximum strength and fun.
Keeping true to our roots we have developed a Race Ready ultimate performance axle that does not burn a hole in your pocket an adheres to the highest quality standard. What sets the 300M steel apart is its composition.
This aircraft-grade alloy is a modified, reinforced version of the already robust 4340 chromoly, enhanced with the addition of Vanadium and a higher silicon content. Vanadium, a common element in high-speed tool steel (HSS), plays a crucial role in elevating the steel's strength to unparalleled levels.
This means our 300M axles are built to withstand even the most demanding conditions, ensuring maximum durability and longevity. The increased Silicon content further enhances the steel's strength and hardness, while also providing superior resistance to high-temperature oxidation.
This means you can count on our 300M axles to perform flawlessly, even in the harshest environments.
Features:
- Redesigned and re-engineered center shaft to transmit maximum torque
- Center shaft made from robust aircraft-grade 300M material
- CV Joint and internal components made from 4340 chromoly steel
- Re-engineered cage design to enhance durability
- Up to 47 degree angles, large CV joint and shaft diameters
- Up to 40 percent stronger than 4340 material XHD axles
- All components undergo a proprietary dual heat treatment process to enhance strength
- Micro polished inner components with propriety grease to reduce the overall heat
- Backed with 2-Years Limited Warranty
- Available for Long Travel kits in +2, +3, +3.5 and +4 lengths
- Chrome plated to remove stress risers and provide an extra layer of protection to the center shaft
