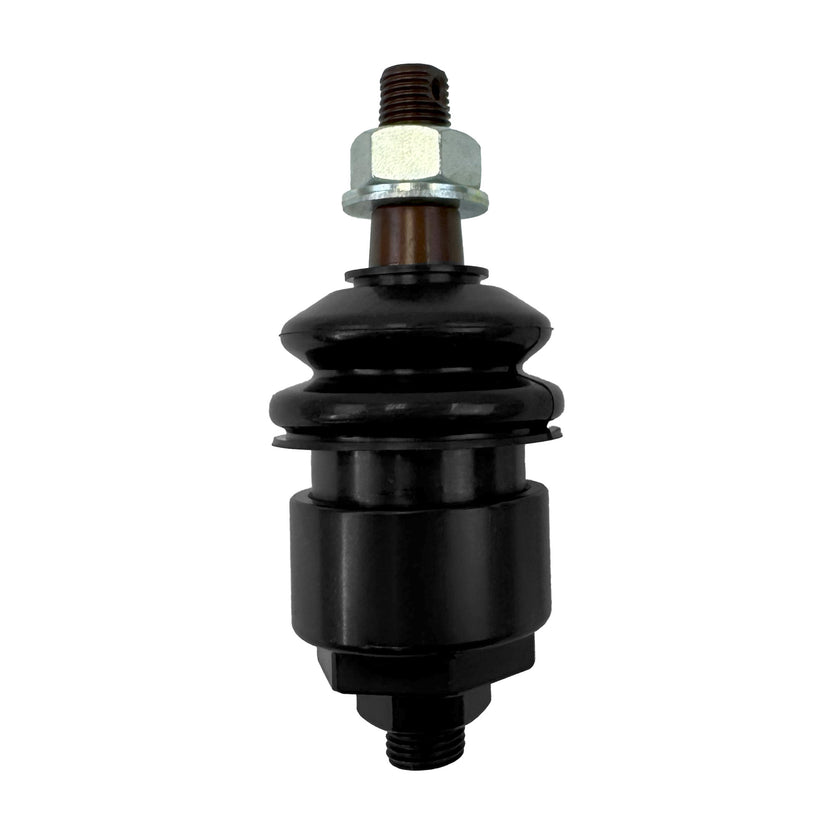

Upper Xtreme Heavy Duty Ball Joint Race Spec 15-23 Honda Pioneer 500/1000/700/520

Upper Xtreme Heavy Duty Ball Joint Race Spec 15-23 Honda Pioneer 500/1000/700/520

$155.95 USD
$139.05 USD $155.95 USD
Sale Sold out
Shipping calculated at checkout.
Vehicle fitment & requirements
Manufacturer-verified fitment
  • : 2021–2022
    Exact model, year, trim, position/configuration and equipment combinations are listed in fitment_notes. All restrictions on each line apply.

    Manufacturer SKU PABJ-4005XHD. Verified 2026-10-11 against embedded manufacturer SKU application data. Each line is an independent exact application; years must not be combined across models/trims/location-configuration keys/equipment. Only explicitly listed years are supported.
    2021,2022 | SXS520M2 Pioneer 520 | Upper | PABJ-4005XHD | S1
    Sources:
    S1: https://www.demonpowersports.com/products/honda-pioneer-520-demon-xtreme-heavy-duty-ball-joint-race-spec

  • : 2017–2023
    Exact model, year, trim, position/configuration and equipment combinations are listed in fitment_notes. All restrictions on each line apply.

    Manufacturer SKU PABJ-4005XHD. Verified 2026-10-11 against embedded manufacturer SKU application data. Each line is an independent exact application; years must not be combined across models/trims/location-configuration keys/equipment. Only explicitly listed years are supported.
    2017,2018,2019,2020,2021,2022,2023 | SXS700M2 Pioneer 700 | Upper | PABJ-4005XHD | S1
    2017,2018,2019,2020,2021,2022,2023 | SXS700M2 Pioneer 700 Deluxe | Upper | PABJ-4005XHD | S1
    2023 | SXS700M2 Pioneer 700 Forest | Upper | PABJ-4005XHD | S1
    2017,2018,2019,2020,2021,2022,2023 | SXS700M4 Pioneer 700-4 | Upper | PABJ-4005XHD | S1
    2017,2018,2019,2020,2021,2022,2023 | SXS700M4 Pioneer 700-4 Deluxe | Upper | PABJ-4005XHD | S1
    2023 | SXS700M4 Pioneer 700-4 Forest | Upper | PABJ-4005XHD | S1
    Sources:
    S1: https://www.demonpowersports.com/products/honda-pioneer-700-demon-xtreme-heavy-duty-ball-joint-race-spec

  • : 2015–2023
    Exact model, year, trim, position/configuration and equipment combinations are listed in fitment_notes. All restrictions on each line apply.

    Manufacturer SKU PABJ-4005XHD. Verified 2026-10-11 against embedded manufacturer SKU application data. Each line is an independent exact application; years must not be combined across models/trims/location-configuration keys/equipment. Only explicitly listed years are supported.
    2015,2016,2017,2018,2019,2020,2022,2023 | SXS500M2 Pioneer 500 | Upper | PABJ-4005XHD | S1
    Sources:
    S1: https://www.demonpowersports.com/products/honda-pioneer-500-demon-xtreme-heavy-duty-ball-joint-race-spec

  • : 2016–2024
    Exact model, year, trim, position/configuration and equipment combinations are listed in fitment_notes. All restrictions on each line apply.

    Manufacturer SKU PABJ-4005XHD. Verified 2026-10-11 against embedded manufacturer SKU application data. Each line is an independent exact application; years must not be combined across models/trims/location-configuration keys/equipment. Only explicitly listed years are supported.
    2016,2017,2018,2019,2020,2021 | SXS1000M3 Pioneer 1000 | Upper | Not compatible with Portal Gear Lifts | S1
    2024 | SXS1000M3 Pioneer 1000 | Upper | PABJ-4005XHD | S1
    2020,2021 | SXS1000M3 Pioneer 1000 Deluxe | Upper | Not compatible with Portal Gear Lifts | S1
    2024 | SXS1000M3 Pioneer 1000 Deluxe | Upper | PABJ-4005XHD | S1
    2016,2017,2018,2019 | SXS1000M3 Pioneer 1000 EPS | Upper | Not compatible with Portal Gear Lifts | S1
    2024 | SXS1000M3 Pioneer 1000 Forest | Upper | PABJ-4005XHD | S1
    2017,2018,2019,2021 | SXS1000M3 Pioneer 1000 Limited Edition | Upper | Not compatible with Portal Gear Lifts | S1
    2021 | SXS1000M3 Pioneer 1000 Special Edition | Upper | Not compatible with Portal Gear Lifts | S1
    2024 | SXS1000M3 Pioneer 1000 Trail | Upper | PABJ-4005XHD | S1
    2016,2017,2018,2019,2020,2021 | SXS1000M5 Pioneer 1000-5 | Upper | Not compatible with Portal Gear Lifts | S1
    2024 | SXS1000M5 Pioneer 1000-5 | Upper | PABJ-4005XHD | S1
    2016,2017,2018,2019,2020,2021 | SXS1000M5 Pioneer 1000-5 Deluxe | Upper | Not compatible with Portal Gear Lifts | S1
    2024 | SXS1000M5 Pioneer 1000-5 Deluxe | Upper | PABJ-4005XHD | S1
    2024 | SXS1000M5 Pioneer 1000-5 Forest | Upper | PABJ-4005XHD | S1
    2017,2018,2019,2020,2021 | SXS1000M5 Pioneer 1000-5 Limited Edition | Upper | Not compatible with Portal Gear Lifts | S1
    2021 | SXS1000M5 Pioneer 1000-5 Special Edition | Upper | Not compatible with Portal Gear Lifts | S1
    2024 | SXS1000M5 Pioneer 1000-5 Trail | Upper | PABJ-4005XHD | S1
    2024 | SXS10M6 Pioneer 1000-6 Deluxe Crew | Upper | PABJ-4005XHD | S1
    Sources:
    S1: https://www.demonpowersports.com/products/honda-pioneer-1000-demon-xtreme-heavy-duty-ball-joint-race-spec

  • : 2024–2024
    Exact model, year, trim, position/configuration and equipment combinations are listed in fitment_notes. All restrictions on each line apply.

    Manufacturer SKU PABJ-4005XHD. Verified 2026-10-11 against embedded manufacturer SKU application data. Each line is an independent exact application; years must not be combined across models/trims/location-configuration keys/equipment. Only explicitly listed years are supported.
    2024 | SXS10S2R Talon 1000R | Upper | PABJ-4005XHD | S1
    2024 | SXS10S2RD Talon 1000R FOX Live Valve | Upper | PABJ-4005XHD | S1
    2024 | SXS10S2X Talon 1000X | Upper | PABJ-4005XHD | S2
    2024 | SXS10S2XD Talon 1000X FOX Live Valve | Upper | PABJ-4005XHD | S2
    2024 | SXS10S4 Talon 1000X-4 | Upper | PABJ-4005XHD | S2
    2024 | SXS10S4 Talon 1000X-4 FOX Live Valve | Upper | PABJ-4005XHD | S2
    2024 | SXS10S4RD Talon 1000R-4 FOX Live Valve | Upper | PABJ-4005XHD | S1
    Sources:
    S1: https://www.demonpowersports.com/products/honda-talon-1000r-demon-xtreme-heavy-duty-ball-joint-race-spec
    S2: https://www.demonpowersports.com/products/honda-talon-1000x-demon-xtreme-heavy-duty-ball-joint-race-spec

Check your exact model, year, trim and equipment before ordering.

Select your vehicle to check the recorded application and installation requirements.

SELECT OR CHANGE VEHICLE →

Demon Xtreme Heavy Duty Ball Joint sets the industry standard for unmatched durability and performance. Engineered specifically for vehicles with lifts and oversized tires, it outlasts nearly all competitors.

Our innovative design eliminates the snap ring, opting for a threaded chromoly body for secure ball joint retention.
Constructed from 300M stud and dual heat-treated 4340 chromoly steel body and finished with zinc plating, it ensures supreme durability.

Moreover, the Demon Xtreme Ball Joint is adjustable, rebuildable, and greaseable, maintaining smooth operation for years to come.
Features:

  • Upper Xtreme Heavy Duty Ball Joint Race Spec 2015-2023 Honda Pioneer 500/1000/700/520
  • 300M steel stud for increased strength
  • Oversized housing and cap made from 4340 chromoly steel
  • Threaded chromoly body and cap to eliminate the snap ring
  • Fully Adjustable, greaseable, and rebuildable
  • Engineered specifically for vehicles with lifts, oversized tires and performance builds
  • Over 2.2 times stronger than OEM
