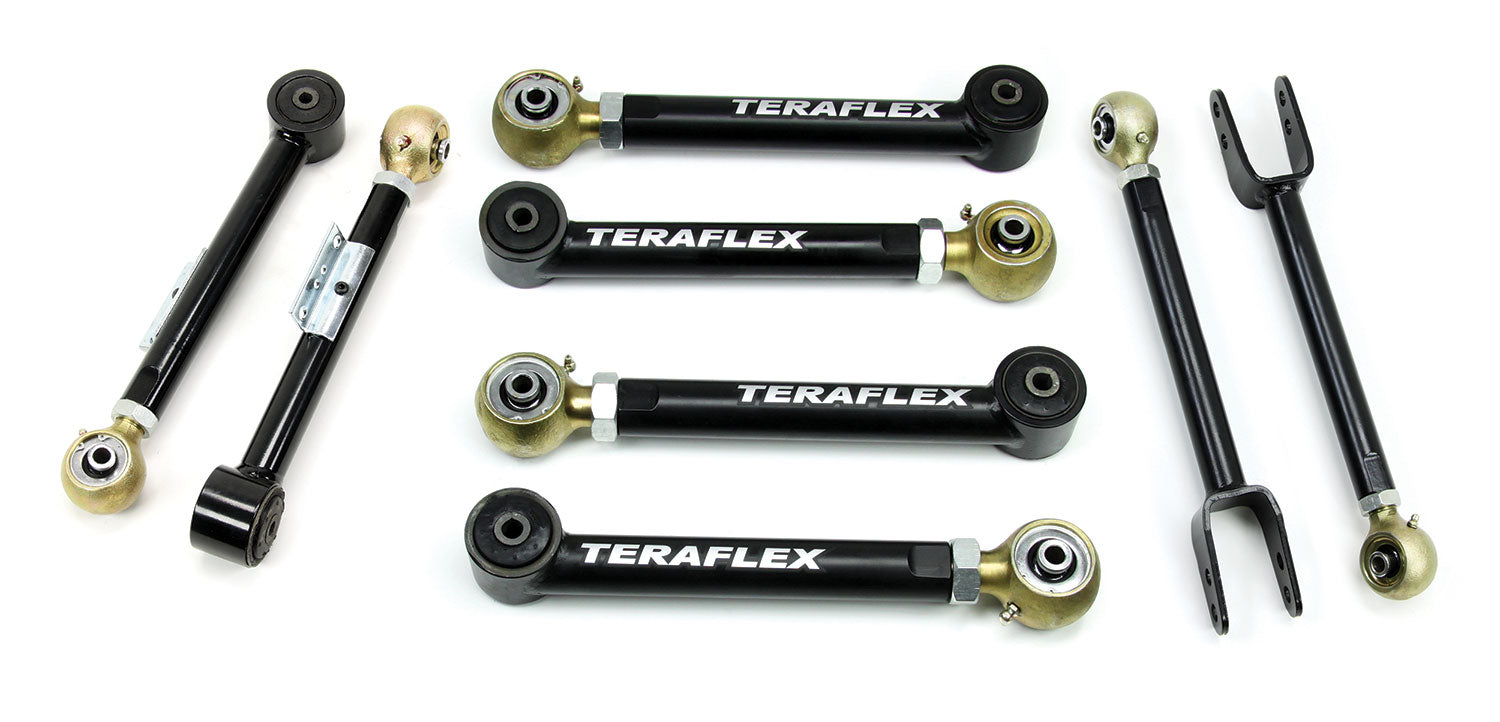

TJ / ZJ Short Control Arm Kit 8-Arm 0-4 Inch Lift TeraFlex
TJ / ZJ Short Control Arm Kit 8-Arm 0-4 Inch Lift TeraFlex
Contact us to confirm the exact vehicle and configuration before ordering this part.
Fitment confirmation is required for this item. Send us your year, model and configuration before ordering.
SELECT OR CHANGE VEHICLE →Shipping requires confirmation for this configuration. Request a quote before payment.
Couldn't load pickup availability
TeraFlex TJ / ZJ: Short Control Arms provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited and ZJ Grand Cherokee models with 0-4 Inch Lifts. Bolts to the factory control arm mounting brackets.
- Rebuildable joints for easy maintenance.
- Can be added to any existing suspension lift.
Includes:
- Short Control Arm Pairs:
- Arm Pair - Front Upper (# 1613800)
- Arm Pair - Lower (Front or Rear) (# 1615700) x 2
- Arm Pair - Rear Upper (# 1614800)
Fitment Vehicle(s):
- TJ Wrangler (short wheelbase)
- LJ Wrangler Unlimited (long wheelbase)
- ZJ Grand Cherokee
Specs:
- Lift Height: 0-4 Inch
Control Arm Specs:
TJ / ZJ / XJ / MJ: Short Control Arm Pair - Front Upper (# 1613800):
- Tube Diameter & Wall: 1.25 Inch x 0.25 Inch
- Factory Length: 15-1/8 Inch
- Min. Length: 14-13/16 Inch
- Max. Length: 17-3/16 Inch
- Both - Bolts: 7/16 Inch (12mm)
- Joint - Axle: NA
- Joint - Frame: 4116230
TJ / ZJ / XJ / MJ: Short Control Arm Pair - Lower (Front or Rear) (# 1615700) x 2:
- Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
- Factory Length: 15-3/4 Inch
- Min. Length: 14-15/16 Inch
- Max. Length: 17-5/16 Inch
- Both - Bolts: 9/16 Inch (14mm)
- Joint - Axle: 4116260
- Bushing - Frame: 4915161
TJ / ZJ: Short Control Arm Pair - Rear Upper (# 1614800)
- Tube Diameter & Wall: 1.25 Inch x 0.25 Inch
- Factory Length: 13-1/4 Inch
- Min. Length: 13 Inch
- Max. Length: 14-3/8 Inch
- Both - Bolts: 7/16 Inch (12mm)
- Joint - Axle: NA
- Joint - Frame: 4116230
