18-Up Wrangler JL 4 Door Alpine Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift TeraFlex
18-Up Wrangler JL 4 Door Alpine Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift TeraFlex
Contact us to confirm the exact vehicle and configuration before ordering this part.
Fitment confirmation is required for this item. Send us your year, model and configuration before ordering.
SELECT OR CHANGE VEHICLE →Shipping requires confirmation for this configuration. Request a quote before payment.
Couldn't load pickup availability
TeraFlex JL: Alpine Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3-6 Inch Lifts.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
CAD-engineered TeraFlex JL: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength.
Can be added to any existing suspension lift.

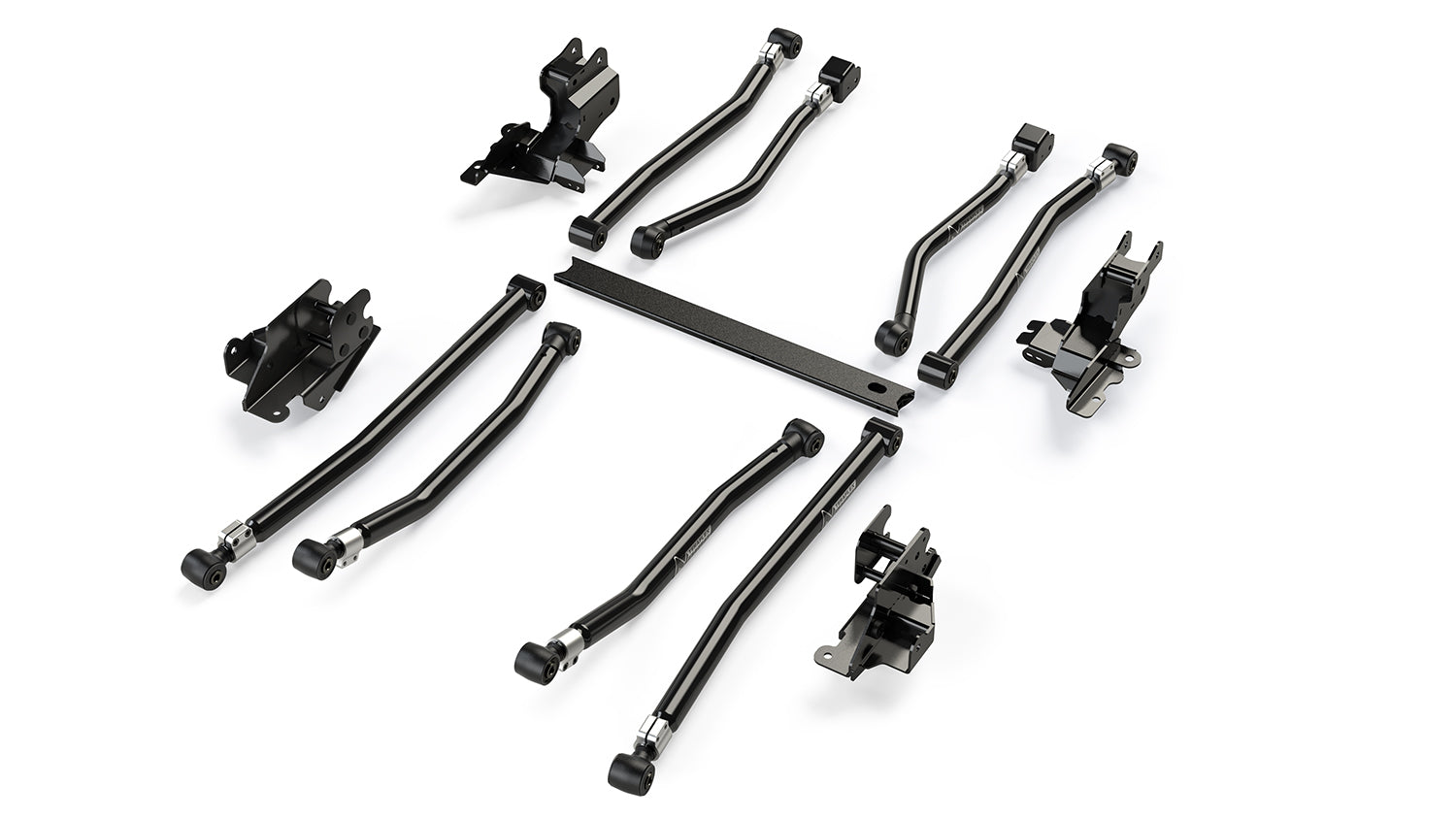

Includes:
- Alpine Long Arm Kit - 8-Arm (# 1316005):
- Arm Pair - Front Upper (# 1316520)
- Arm Pair - Front Lower (# 1316500)
- Arm Pair - Rear Upper (# 1316560)
- Arm Pair - Rear Lower (# 1316540)
- Long Arm Bracket Kit (# 1958000):
- Brackets - Front
- Brackets - Rear
- Suspension Crossmember - Front
- All necessary hardware
Fitment:
- JL Wrangler Unlimited (4-door)
Specs:
- Lift Height: 3-6 Inch
- Does Not fit 4-door JL Wrangler Unlimited 4xe hybrid models.
Control Arm Specs:
- JL / JT: Alpine Long Arm Pair - Front Upper (# 1316520):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 20-1/4 Inch
- Min. Length: 27-3/4 Inch
- Max. Length: 28-7/8 Inch
- Bolt - Axle: 12mm
- Bolt - Frame: 14mm
- Bushing - Axle: OEM
- Bushing - Frame: 611012
- JL / JT: Alpine Long Arm Pair - Front Lower (# 1316500):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 24 Inch
- Min. Length: 30-7/8 Inch
- Max. Length: 32 Inch
- Bolt - Both: 16mm
- Bushing - Both: 09-01-201-001
- JL: Alpine Long Arm Pair - Rear Upper (# 1316560):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 17-3/8 Inch
- Min. Length: 32-3/4 Inch
- Max. Length: 33-3/4 Inch
- Bolt - Both: 14mm
- Bushing - Axle: 611012
- Bushing - Frame: 611011
- JL: Alpine Long Arm Pair - Rear Lower (# 1316540):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 19-3/4 Inch
- Min. Length: 36-1/4 Inch
- Max. Length: 37-3/8 Inch
- Bolt - Both: 14mm
- Bushing - Both: 611011
