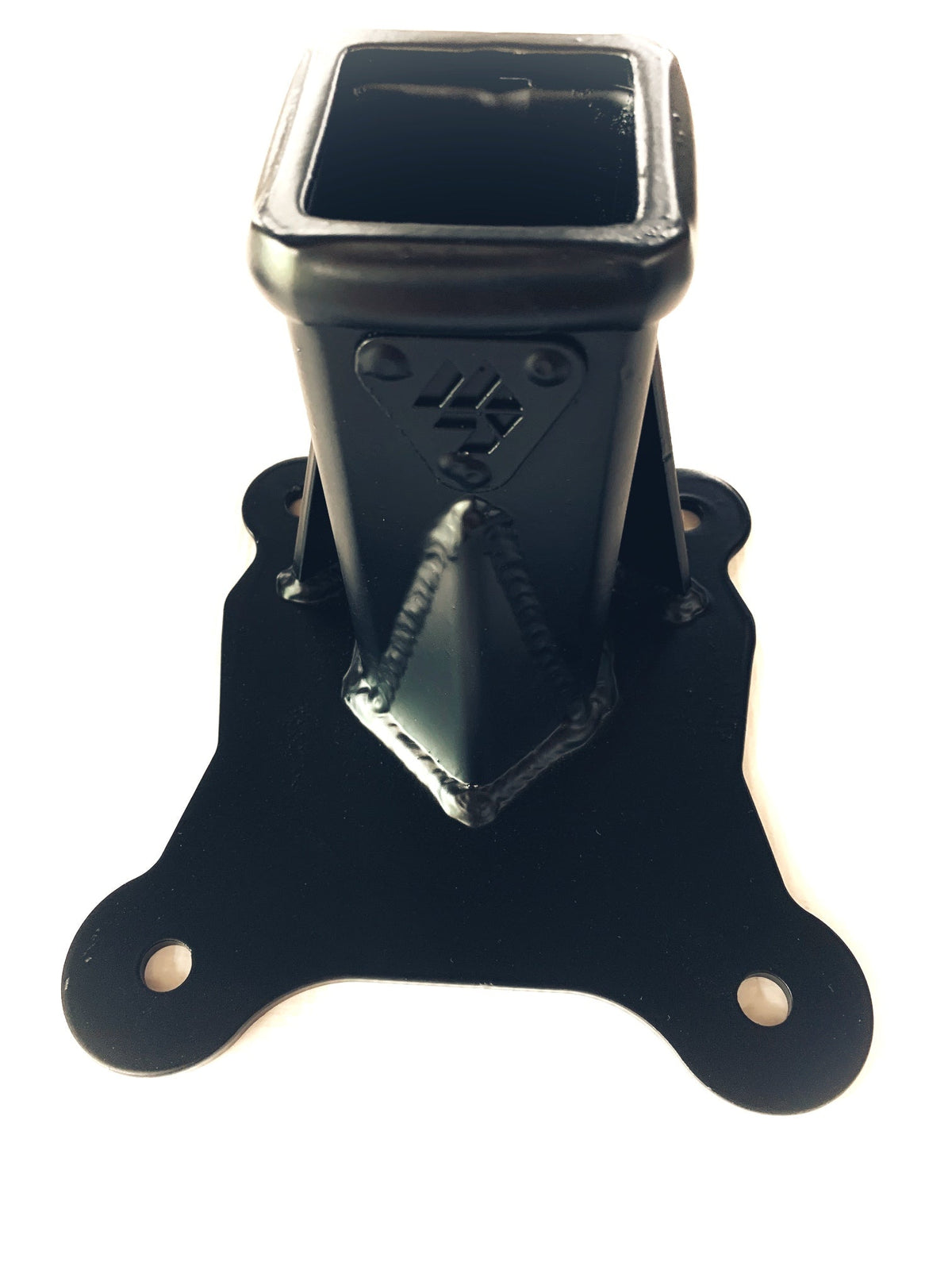

L&W Fab Factory Replacement Receiver Hitch
RZR XP 1000 / Turbo / RS1
This receiver hitch plate is for anyone that isn’t planning on running a bumper, or is running bumper that requires the use of a factory shaped radius rod plate.
This is a direct replacement of the factory radius rod plate with an added receiver hitch.
Features
- Made in USA!
- Powder Coated Black
- 1/4″ thick HRPO steel.
- Receiver protrusion for all variations is 5-15/16″
- All variations accepts standard 2″ receiver with 5/8″ pin
* Small Bolt -10mm are used for Models 2014 to mid 2017
* Big Bolt -12mm began being used in mid 2017
*If your year model fall in the mid 2017 range, you can determine your bolt size by the socket size. If the socket is 15mm, then you will need a 10mm bolt. If it is a 18mm, then you will need the 12mm bolt.
