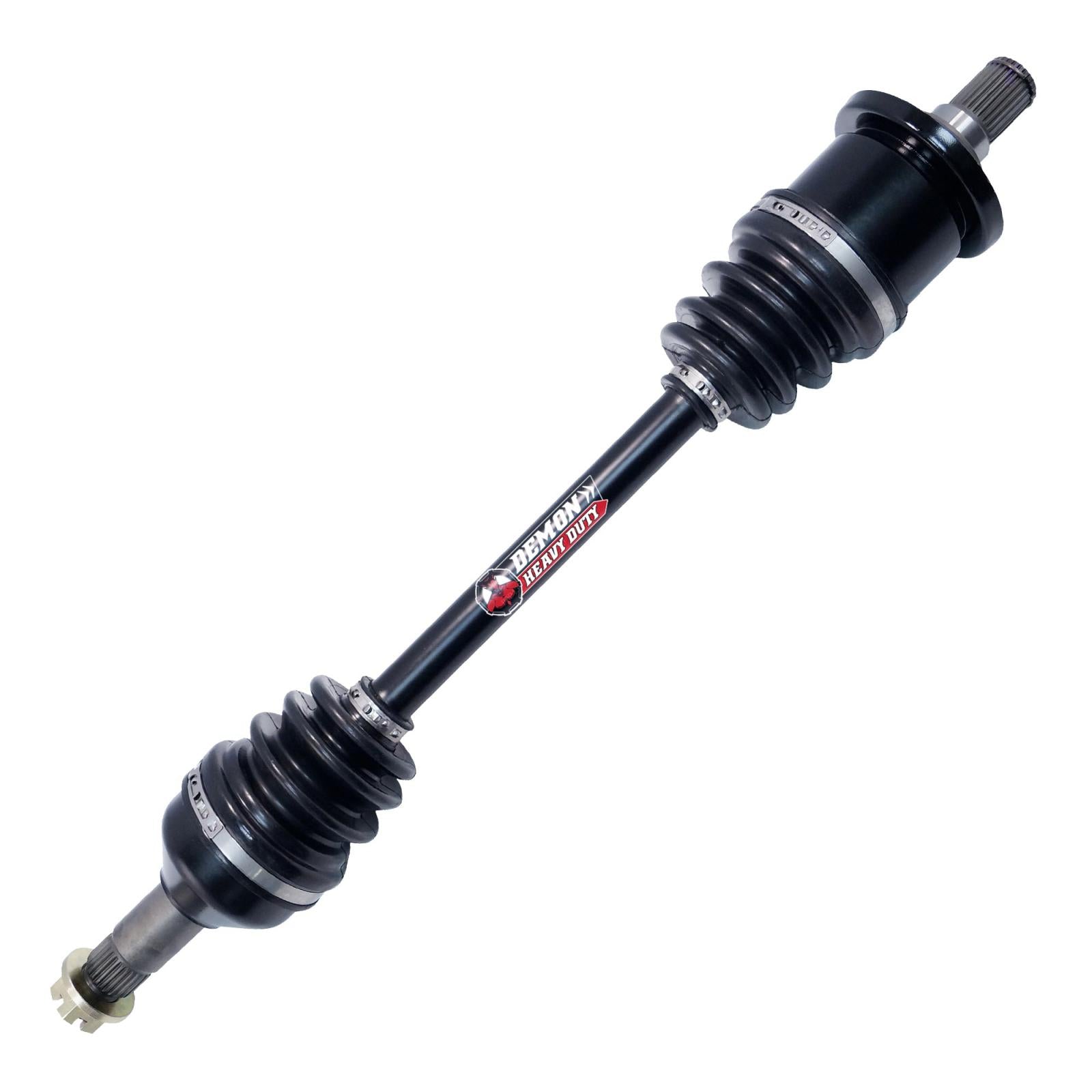

• Heavy Duty Axle Rear Left/Right Each 12-16 Arctic Cat MudPro
1 1

Heavy Duty Axle Rear Left/Right Each 12-16 Arctic Cat MudPro

Heavy Duty Axle Rear Left/Right Each 12-16 Arctic Cat MudPro

$254.62 USD
$231.75 USD $254.62 USD
Sale Sold out
Shipping calculated at checkout.
Vehicle fitment & requirements
Manufacturer-verified fitment
  • : 2004–2017
    Independent exact applications and installation restrictions are preserved in fitment_notes.

    Exact manufacturer SKU PAXL-1152HD. ATV applications verified 2026-10-11. Every line is independent; do not combine years, models, locations/configurations or equipment across lines. Only explicit years apply.
    2010,2011 | 1000 EFI H2 4x4 Auto Mud Pro | Rear Left | PAXL-1152HD | S7
    2010,2011 | 1000 EFI H2 4x4 Auto Mud Pro | Rear Right | PAXL-1152HD | S7
    2010 | 1000 EFI H2 4x4 Auto TRV | Rear Left | PAXL-1152HD | S12
    2010 | 1000 EFI H2 4x4 Auto TRV | Rear Right | PAXL-1152HD | S12
    2009,2010,2011 | 1000 TRV Cruiser | Rear Left | PAXL-1152HD | S17
    2009,2010,2011 | 1000 TRV Cruiser | Rear Right | PAXL-1152HD | S17
    2011 | 450 | Rear Left | PAXL-1152HD | S1
    2011 | 450 | Rear Right | PAXL-1152HD | S1
    2010,2011 | 450 EFI H1 4x4 Auto | Rear Left | PAXL-1152HD | S1
    2010,2011 | 450 EFI H1 4x4 Auto | Rear Right | PAXL-1152HD | S1
    2011 | 450 TRV | Rear Left | PAXL-1152HD | S1
    2011 | 450 TRV | Rear Right | PAXL-1152HD | S1
    2012 | 450i | Rear Left | PAXL-1152HD | S1
    2012 | 450i | Rear Right | PAXL-1152HD | S1
    2014 | 500 | Rear Left | PAXL-1152HD | S2
    2014 | 500 | Rear Right | PAXL-1152HD | S2
    2009 | 500 4x4 | Rear Left | PAXL-1152HD | S2
    2009 | 500 4x4 | Rear Right | PAXL-1152HD | S2
    2009 | 500 4x4 Auto | Rear Left | PAXL-1152HD | S2
    2009 | 500 4x4 Auto | Rear Right | PAXL-1152HD | S2
    2006,2007,2008 | 500 4x4 Auto FIS | Rear Left | PAXL-1152HD | S2
    2006,2007,2008 | 500 4x4 Auto FIS | Rear Right | PAXL-1152HD | S2
    2006 | 500 4x4 Auto LE | Rear Left | PAXL-1152HD | S2
    2006 | 500 4x4 Auto LE | Rear Right | PAXL-1152HD | S2
    2006 | 500 4x4 Auto TBX | Rear Left | PAXL-1152HD | S2
    2006 | 500 4x4 Auto TBX | Rear Right | PAXL-1152HD | S2
    2006,2007,2008 | 500 4x4 Auto TRV | Rear Left | PAXL-1152HD | S2
    2006,2007,2008 | 500 4x4 Auto TRV | Rear Right | PAXL-1152HD | S2
    2006,2007,2008 | 500 4x4 FIS | Rear Left | PAXL-1152HD | S2
    2006,2007,2008 | 500 4x4 FIS | Rear Right | PAXL-1152HD | S2
    2013 | 500 Core | Rear Left | PAXL-1152HD | S2
    2013 | 500 Core | Rear Right | PAXL-1152HD | S2
    2013,2014 | 500 XT | Rear Left | PAXL-1152HD | S2
    2013,2014 | 500 XT | Rear Right | PAXL-1152HD | S2
    2014 | 550 | Rear Left | PAXL-1152HD | S3
    2014 | 550 | Rear Right | PAXL-1152HD | S3
    2011 | 550 4x4 Auto | Rear Left | PAXL-1152HD | S3
    2011 | 550 4x4 Auto | Rear Right | PAXL-1152HD | S3
    2009,2010 | 550 4x4 Auto LE | Rear Left | PAXL-1152HD | S3
    2009,2010 | 550 4x4 Auto LE | Rear Right | PAXL-1152HD | S3
    2009,2010 | 550 4x4 Auto TRV | Rear Left | PAXL-1152HD | S3
    2009,2010 | 550 4x4 Auto TRV | Rear Right | PAXL-1152HD | S3
    2009 | 550 4x4 Auto TRV LE | Rear Left | PAXL-1152HD | S3
    2009 | 550 4x4 Auto TRV LE | Rear Right | PAXL-1152HD | S3
    2013 | 550 Core | Rear Left | PAXL-1152HD | S3
    2013 | 550 Core | Rear Right | PAXL-1152HD | S3
    2009,2010 | 550 H1 EFI | Rear Left | PAXL-1152HD | S3
    2009,2010 | 550 H1 EFI | Rear Right | PAXL-1152HD | S3
    2014 | 550 LTD | Rear Left | PAXL-1152HD | S3
    2014 | 550 LTD | Rear Right | PAXL-1152HD | S3
    2010 | 550 S | Rear Left | PAXL-1152HD | S3
    2010 | 550 S | Rear Right | PAXL-1152HD | S3
    2011 | 550 TRV Cruiser | Rear Left | PAXL-1152HD | S3
    2011 | 550 TRV Cruiser | Rear Right | PAXL-1152HD | S3
    2011 | 550 TRV GT | Rear Left | PAXL-1152HD | S3
    2011 | 550 TRV GT | Rear Right | PAXL-1152HD | S3
    2010 | 550 TRV S GT | Rear Left | PAXL-1152HD | S3
    2010 | 550 TRV S GT | Rear Right | PAXL-1152HD | S3
    2013,2014 | 550 XT | Rear Left | PAXL-1152HD | S3
    2013,2014 | 550 XT | Rear Right | PAXL-1152HD | S3
    2011,2012 | 550i GT | Rear Left | PAXL-1152HD | S3
    2011,2012 | 550i GT | Rear Right | PAXL-1152HD | S3
    2011,2012,2013 | 550i LTD | Rear Left | PAXL-1152HD | S3
    2011,2012,2013 | 550i LTD | Rear Right | PAXL-1152HD | S3
    2004 | 650 4x4 Auto | Rear Left | PAXL-1152HD | S4
    2004 | 650 4x4 Auto | Rear Right | PAXL-1152HD | S4
    2004 | 650 4x4 Auto LE | Rear Left | PAXL-1152HD | S4
    2004 | 650 4x4 Auto LE | Rear Right | PAXL-1152HD | S4
    2005,2007,2008,2010,2011 | 650 H1 4x4 Auto | Rear Left | PAXL-1152HD | S4
    2005,2007,2008,2010,2011 | 650 H1 4x4 Auto | Rear Right | PAXL-1152HD | S4
    2007 | 650 H1 4x4 Auto LE | Rear Left | PAXL-1152HD | S4
    2007 | 650 H1 4x4 Auto LE | Rear Right | PAXL-1152HD | S4
    2010,2011 | 650 H1 4x4 Auto Mud Pro | Rear Left | PAXL-1152HD | S4
    2010,2011 | 650 H1 4x4 Auto Mud Pro | Rear Right | PAXL-1152HD | S4
    2007,2008,2009 | 650 H1 4x4 Auto TBX | Rear Left | PAXL-1152HD | S4
    2007,2008,2009 | 650 H1 4x4 Auto TBX | Rear Right | PAXL-1152HD | S4
    2009 | 650 H1 4x4 Auto TRV | Rear Left | PAXL-1152HD | S4
    2009 | 650 H1 4x4 Auto TRV | Rear Right | PAXL-1152HD | S4
    2007,2008 | 650 H1 4x4 Auto TRV Plus | Rear Left | PAXL-1152HD | S4
    2007,2008 | 650 H1 4x4 Auto TRV Plus | Rear Right | PAXL-1152HD | S4
    2007 | 650 H1 4x4 Auto TRV Plus LE | Rear Left | PAXL-1152HD | S4
    2007 | 650 H1 4x4 Auto TRV Plus LE | Rear Right | PAXL-1152HD | S4
    2005,2006 | 650 V-2 4x4 Auto | Rear Left | PAXL-1152HD | S4
    2005,2006 | 650 V-2 4x4 Auto | Rear Right | PAXL-1152HD | S4
    2006 | 650 V-2 4x4 Auto LE/TS | Rear Left | PAXL-1152HD | S4
    2006 | 650 V-2 4x4 Auto LE/TS | Rear Right | PAXL-1152HD | S4
    2011,2014 | 700 | Rear Left | PAXL-1152HD | S16
    2011,2014 | 700 | Rear Right | PAXL-1152HD | S16
    2013 | 700 Core | Rear Left | PAXL-1152HD | S5
    2013 | 700 Core | Rear Right | PAXL-1152HD | S5
    2007,2008 | 700 EFI 4x4 Auto | Rear Left | PAXL-1152HD | S5
    2007,2008 | 700 EFI 4x4 Auto | Rear Right | PAXL-1152HD | S5
    2007 | 700 EFI 4x4 Auto LE | Rear Left | PAXL-1152HD | S5
    2007 | 700 EFI 4x4 Auto LE | Rear Right | PAXL-1152HD | S5
    2008 | 700 EFI 4x4 Auto M4 | Rear Left | PAXL-1152HD | S5
    2008 | 700 EFI 4x4 Auto M4 | Rear Right | PAXL-1152HD | S5
    2006 | 700 EFI 4x4 Auto SE | Rear Left | PAXL-1152HD | S5
    2006 | 700 EFI 4x4 Auto SE | Rear Right | PAXL-1152HD | S5
    2008,2009,2010,2011 | 700 EFI 4x4 Auto TRV Cruiser | Rear Left | PAXL-1152HD | S16
    2008,2009,2010,2011 | 700 EFI 4x4 Auto TRV Cruiser | Rear Right | PAXL-1152HD | S16
    2008 | 700 EFI 4x4 Auto TRV LE | Rear Left | PAXL-1152HD | S16
    2008 | 700 EFI 4x4 Auto TRV LE | Rear Right | PAXL-1152HD | S16
    2009,2010 | 700 EFI H1 4x4 Auto | Rear Left | PAXL-1152HD | S5
    2009,2010 | 700 EFI H1 4x4 Auto | Rear Right | PAXL-1152HD | S5
    2009,2010 | 700 EFI H1 4x4 Auto LE | Rear Left | PAXL-1152HD | S5
    2009,2010 | 700 EFI H1 4x4 Auto LE | Rear Right | PAXL-1152HD | S5
    2009,2010,2011 | 700 EFI H1 4x4 Auto Mud Pro | Rear Left | PAXL-1152HD | S9
    2009,2010,2011 | 700 EFI H1 4x4 Auto Mud Pro | Rear Right | PAXL-1152HD | S9
    2008,2009 | 700 EFI H1 4x4 Auto SE | Rear Left | PAXL-1152HD | S5
    2008,2009 | 700 EFI H1 4x4 Auto SE | Rear Right | PAXL-1152HD | S5
    2010 | 700 EFI H1 4x4 Auto TBX | Rear Left | PAXL-1152HD | S5
    2010 | 700 EFI H1 4x4 Auto TBX | Rear Right | PAXL-1152HD | S5
    2010,2011 | 700 EFI H1 4x4 Auto TRV | Rear Left | PAXL-1152HD | S16
    2010,2011 | 700 EFI H1 4x4 Auto TRV | Rear Right | PAXL-1152HD | S16
    2011,2014 | 700 LTD | Rear Left | PAXL-1152HD | S5
    2011,2014 | 700 LTD | Rear Right | PAXL-1152HD | S5
    2010,2011 | 700 S | Rear Left | PAXL-1152HD | S5
    2010,2011 | 700 S | Rear Right | PAXL-1152HD | S5
    2011,2012,2013,2014 | 700 Super Duty Diesel | Rear Left | PAXL-1152HD | S6
    2011,2012,2013,2014 | 700 Super Duty Diesel | Rear Right | PAXL-1152HD | S6
    2010,2011 | 700 TRV GT | Rear Left | PAXL-1152HD | S16
    2010,2011 | 700 TRV GT | Rear Right | PAXL-1152HD | S16
    2013,2014 | 700 XT | Rear Left | PAXL-1152HD | S16
    2013,2014 | 700 XT | Rear Right | PAXL-1152HD | S16
    2012 | 700i | Rear Left | PAXL-1152HD | S5
    2012 | 700i | Rear Right | PAXL-1152HD | S5
    2012 | 700i GT | Rear Left | PAXL-1152HD | S5
    2012 | 700i GT | Rear Right | PAXL-1152HD | S5
    2012,2013 | 700i LTD | Rear Left | PAXL-1152HD | S5
    2012,2013 | 700i LTD | Rear Right | PAXL-1152HD | S5
    2012,2013,2014,2015,2017 | MudPro 1000 LTD | Rear Left | PAXL-1152HD | S7
    2012,2013,2014,2015,2017 | MudPro 1000 LTD | Rear Right | PAXL-1152HD | S7
    2011 | MudPro 650 | Rear Left | PAXL-1152HD | S8
    2011 | MudPro 650 | Rear Right | PAXL-1152HD | S8
    2012,2013,2014,2015,2016 | MudPro 700 LTD | Rear Left | PAXL-1152HD | S9
    2012,2013,2014,2015,2016 | MudPro 700 LTD | Rear Right | PAXL-1152HD | S9
    2014 | TBX 700 | Rear Left | PAXL-1152HD | S10
    2014 | TBX 700 | Rear Right | PAXL-1152HD | S10
    2011 | TBX 700 LTD | Rear Left | PAXL-1152HD | S10
    2011 | TBX 700 LTD | Rear Right | PAXL-1152HD | S10
    2013 | TBX 700 XT | Rear Left | PAXL-1152HD | S10
    2013 | TBX 700 XT | Rear Right | PAXL-1152HD | S10
    2012 | TBX 700i GT | Rear Left | PAXL-1152HD | S10
    2012 | TBX 700i GT | Rear Right | PAXL-1152HD | S10
    2013,2014,2015 | TRV 1000 LTD | Rear Left | PAXL-1152HD | S12
    2013,2014,2015 | TRV 1000 LTD | Rear Right | PAXL-1152HD | S12
    2015 | TRV 1000 XT | Rear Left | PAXL-1152HD | S12
    2015 | TRV 1000 XT | Rear Right | PAXL-1152HD | S12
    2012 | TRV 1000i Cruiser | Rear Left | PAXL-1152HD | S12
    2012 | TRV 1000i Cruiser | Rear Right | PAXL-1152HD | S12
    2012 | TRV 450i | Rear Left | PAXL-1152HD | S13
    2012 | TRV 450i | Rear Right | PAXL-1152HD | S13
    2012 | TRV 450i GT | Rear Left | PAXL-1152HD | S13
    2012 | TRV 450i GT | Rear Right | PAXL-1152HD | S13
    2014 | TRV 500 | Rear Left | PAXL-1152HD | S14
    2014 | TRV 500 | Rear Right | PAXL-1152HD | S14
    2013 | TRV 500 Core | Rear Left | PAXL-1152HD | S14
    2013 | TRV 500 Core | Rear Right | PAXL-1152HD | S14
    2013,2014 | TRV 550 LTD | Rear Left | PAXL-1152HD | S15
    2013,2014 | TRV 550 LTD | Rear Right | PAXL-1152HD | S15
    2013,2014 | TRV 550 XT | Rear Left | PAXL-1152HD | S15
    2013,2014 | TRV 550 XT | Rear Right | PAXL-1152HD | S15
    2012 | TRV 550i Crusier | Rear Left | PAXL-1152HD | S15
    2012 | TRV 550i Crusier | Rear Right | PAXL-1152HD | S15
    2012 | TRV 550i GT | Rear Left | PAXL-1152HD | S15
    2012 | TRV 550i GT | Rear Right | PAXL-1152HD | S15
    2013,2014 | TRV 700 LTD | Rear Left | PAXL-1152HD | S16
    2013,2014 | TRV 700 LTD | Rear Right | PAXL-1152HD | S16
    2013,2014 | TRV 700 XT | Rear Left | PAXL-1152HD | S16
    2013,2014 | TRV 700 XT | Rear Right | PAXL-1152HD | S16
    2012 | TRV 700i Cruiser | Rear Left | PAXL-1152HD | S16
    2012 | TRV 700i Cruiser | Rear Right | PAXL-1152HD | S16
    2012 | TRV 700i GT | Rear Left | PAXL-1152HD | S16
    2012 | TRV 700i GT | Rear Right | PAXL-1152HD | S16
    2008,2009,2010 | Thundercat 1000 4x4 Auto | Rear Left | PAXL-1152HD | S11
    2008,2009,2010 | Thundercat 1000 4x4 Auto | Rear Right | PAXL-1152HD | S11
    2010 | Thundercat 1000 4x4 Auto LE | Rear Left | PAXL-1152HD | S11
    2010 | Thundercat 1000 4x4 Auto LE | Rear Right | PAXL-1152HD | S11
    Sources:
    S1: https://www.demonpowersports.com/products/arctic-cat-450-demon-heavy-duty-axle
    S2: https://www.demonpowersports.com/products/arctic-cat-500-demon-heavy-duty-axle
    S3: https://www.demonpowersports.com/products/arctic-cat-550-demon-heavy-duty-axle
    S4: https://www.demonpowersports.com/products/arctic-cat-650-demon-heavy-duty-axle
    S5: https://www.demonpowersports.com/products/arctic-cat-700-demon-heavy-duty-axle
    S6: https://www.demonpowersports.com/products/arctic-cat-diesel-700-demon-heavy-duty-axle
    S7: https://www.demonpowersports.com/products/arctic-cat-mud-pro-1000-demon-heavy-duty-axle
    S8: https://www.demonpowersports.com/products/arctic-cat-mud-pro-650-demon-heavy-duty-axle
    S9: https://www.demonpowersports.com/products/arctic-cat-mud-pro-700-demon-heavy-duty-axle
    S10: https://www.demonpowersports.com/products/arctic-cat-tbx-700-demon-heavy-duty-axle
    S11: https://www.demonpowersports.com/products/arctic-cat-thundercat-1000-demon-heavy-duty-axle
    S12: https://www.demonpowersports.com/products/arctic-cat-trv-1000-demon-heavy-duty-axle
    S13: https://www.demonpowersports.com/products/arctic-cat-trv-450-demon-heavy-duty-axle
    S14: https://www.demonpowersports.com/products/arctic-cat-trv-500-demon-heavy-duty-axle
    S15: https://www.demonpowersports.com/products/arctic-cat-trv-550-demon-heavy-duty-axle
    S16: https://www.demonpowersports.com/products/arctic-cat-trv-700-demon-heavy-duty-axle
    S17: https://www.demonpowersports.com/products/arctic-cat-trv-cruiser-1000-demon-heavy-duty-axle

Check your exact model, year, trim and equipment before ordering.

Select your vehicle to check the recorded application and installation requirements.

SELECT OR CHANGE VEHICLE →

Through years of research and development Demon Powersports has developed an axle that doesn't burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.

Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.

These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40 Degree articulation over terrain on the inboard joint.

The outboard joint can travel 0.5 inches and swing from 45 Degree-47 Degree depending on the model.

The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.

Trust in Demon Heavy Duty Axles to keep you riding!!

  • 15 Percent-20 Percent increase in diameter compared to regular axle
  • Inner cage Made up of 4340 Chromoly steel
  • Dual heat treated high strength chromoly steel shaft
  • Thermoplastic polyester elastomer (TPEE) Boot
  • 10 Percent-15 Percent increase in CV joint size compared to regular joints
  • Wider articulation angles
  • Dual plunge design prevents axle from binding
  • Packed with high load molybdenum grease Precision CNC machined
  • Can Fit 1.5 Inch- 5 Inch Bracket lift of particular brands/ All Portal Gear Lifts / 1.5 Inch- 5 Inch A-arms of particular brands
  • 1-year Limited warranty
View full details
