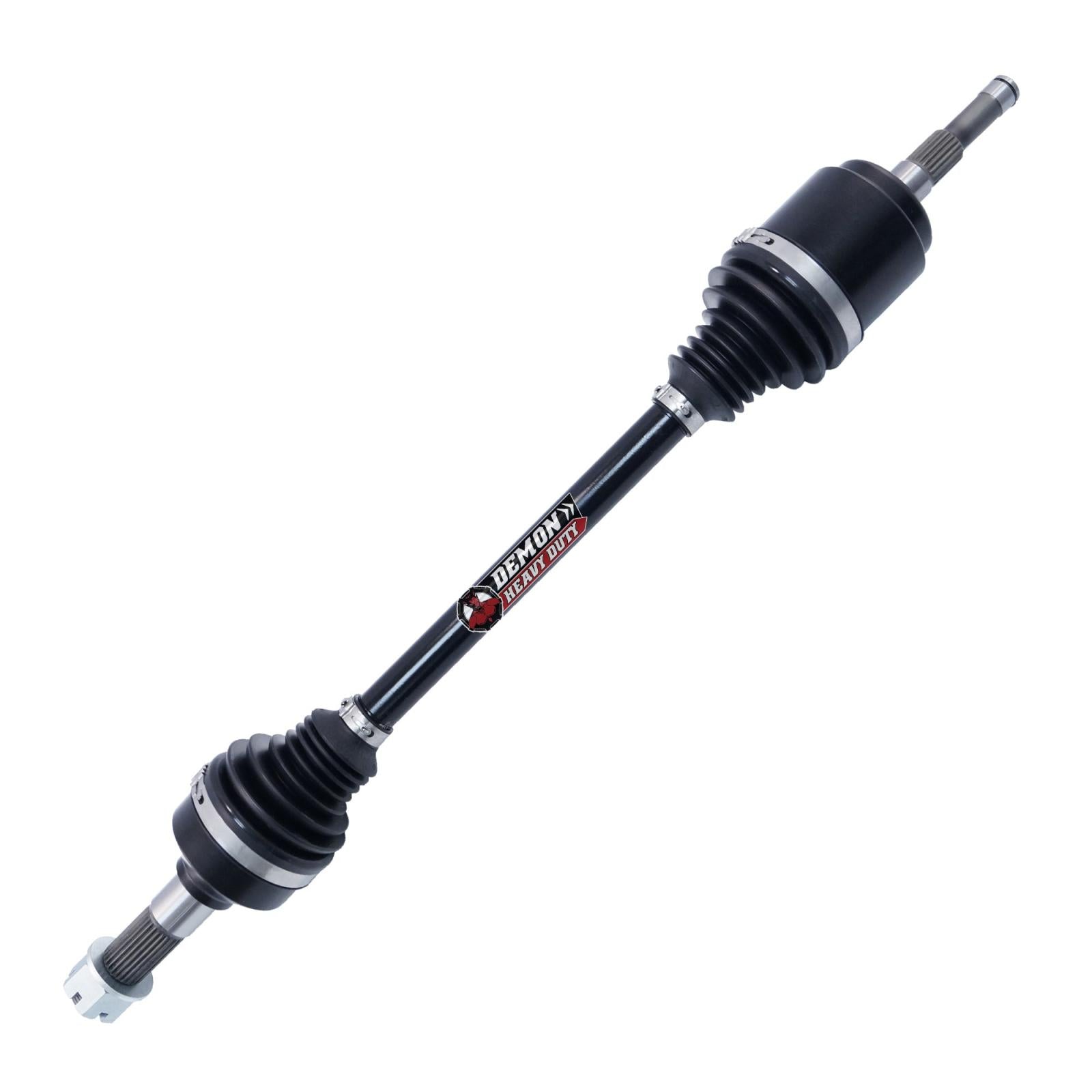

Heavy Duty Axle Front Left Each 15-22 Honda Pioneer 500
Heavy Duty Axle Front Left Each 15-22 Honda Pioneer 500
Vehicle fitment & requirements
- : 2015–2022
Exact model, year, trim, position/configuration and equipment combinations are listed in fitment_notes. All restrictions on each line apply.Manufacturer SKU PAXL-4021HD. Verified 2026-10-11 against embedded manufacturer SKU application data. Each line is an independent exact application; years must not be combined across models/trims/location-configuration keys/equipment. Only explicitly listed years are supported.
2015,2016,2017,2018,2019,2020,2022 | SXS500M2 Pioneer 500 | Front Left | PAXL-4021HD | S1
Sources:
S1: https://www.demonpowersports.com/products/honda-pioneer-500-demon-heavy-duty-axle
Check your exact model, year, trim and equipment before ordering.
Select your vehicle to check the recorded application and installation requirements.
SELECT OR CHANGE VEHICLE →Shipping requires confirmation for this configuration. Request a quote before payment.
Couldn't load pickup availability
Through years of research and development Demon Powersports has developed an axle that doesn't burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.
Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.
These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40 Degree articulation over terrain on the inboard joint.
The outboard joint can travel 0.5 inches and swing from 45 Degree-47 Degree depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.
Trust in Demon Heavy Duty Axles to keep you riding!!
- 15 Percent-20 Percent increase in diameter compared to regular axle
- Inner cage Made up of 4340 Chromoly steel
- Dual heat treated high strength chromoly steel shaft
- Thermoplastic polyester elastomer (TPEE) Boot
- 10 Percent-15 Percent increase in CV joint size compared to regular joints
- Wider articulation angles
- Dual plunge design prevents axle from binding
- Packed with high load molybdenum grease Precision CNC machined
- Can Fit 1.5 Inch- 5 Inch Bracket lift of particular brands/ All Portal Gear Lifts / 1.5 Inch- 5 Inch A-arms of particular brands
- 1-year Limited warranty
